Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off". SHOP D3 FOG

Features

TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
High-Intensity Series Cree LEDs outputting 2100 lumens per pod
DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
Low profile mounting bracket with stainless steel hardware included
Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
Amber & Selective Yellow lenses available

Beam Performance (pair)

Spot Beam
Beam Distance (at 1 lux): 1910 feet (582 meters)
Beam Width (at 1 lux): 100 feet (30 meters)
Combo Beam (1 spot, 1 hybrid)
Beam Distance (at 1 lux): 1520 feet (463 meters)
Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam
Beam Distance (at 1 lux): 1050 feet (320 meters)
Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
LED: (3x) 11 Watt Cree XP-P LEDs
Power Draw: 36 Watts (3 Amps)
Lumens: 2100
DataDim™ Compatible: Yes
Operating Voltage: 9-32V DC
IP67 Waterproof & Submersible
Hybrid Lens Certifications: SAE/DOT J581 & ECE R112 (Clear lens only - Amber and yellow lenses do not SAE & ECE certified)
Spot Lens Certifications: ECE R112

New Wiring & Switching Options

For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!

And last but not least we also make a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.

Product Bundles - What’s Included?

This product page lets you customize your light kit. Please note that the light pods, colored lens kits, and wiring harnesses are packaged separately.

Light Pod Box Contents - DNL.D3.050

(1x) D3 LED Light Pod (spot lens installed)
(1x) D3 Hybrid Lens
(1x) Hinge Mounts with M8 Stainless Steel Hardware
(1x) Wiring Pigtail

Lens Kit Box Contents - DNL.D3.10100 (amber) - DNL.D3.10200 (yellow)

(2x) Spot Lenses (Amber or Yellow)
(2x) Hybrid Lenses (Amber or Yellow)

Instruction Manual Download

PDF Instruction Manual (English)

D3 High / Low Beam Pods

D3 LED Driving Light Pod with DataDim™ Technology

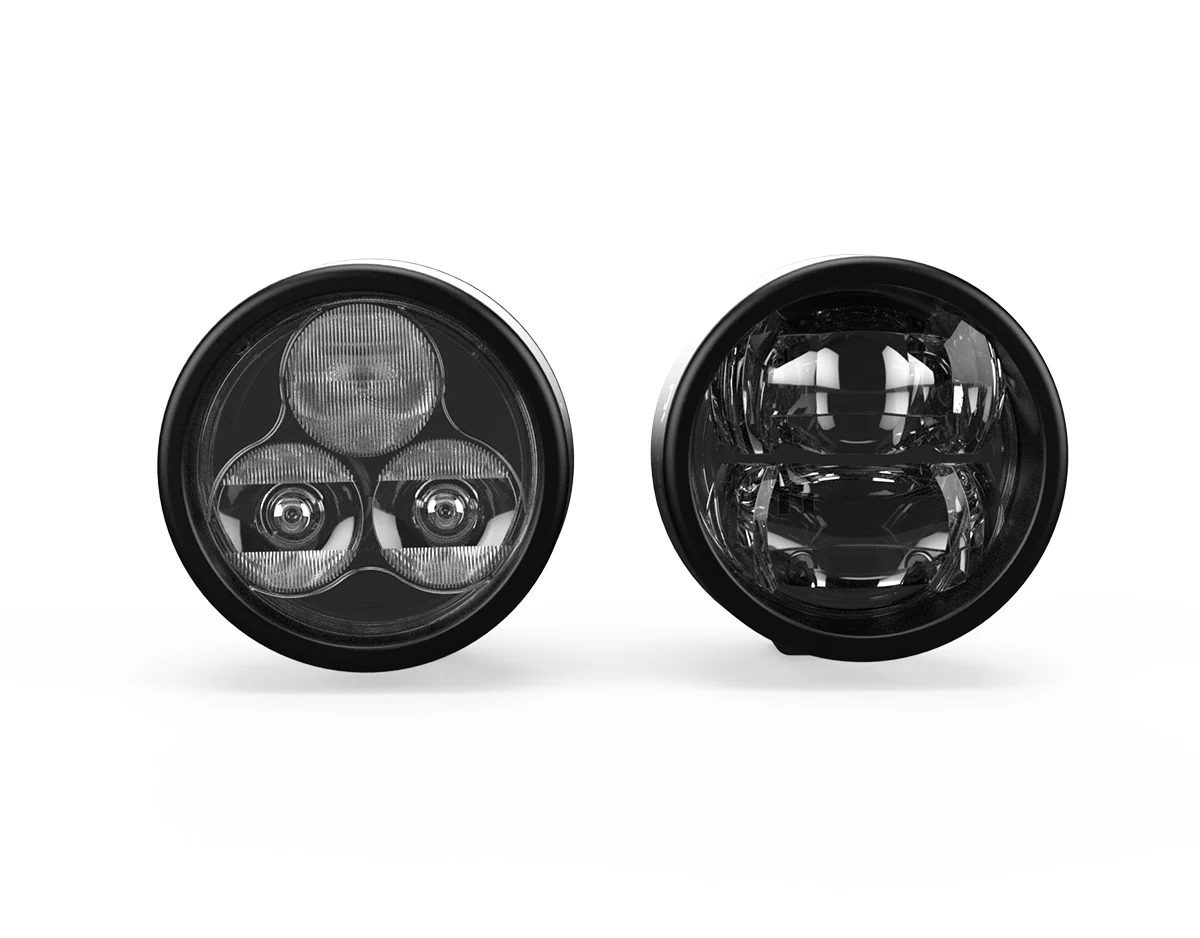

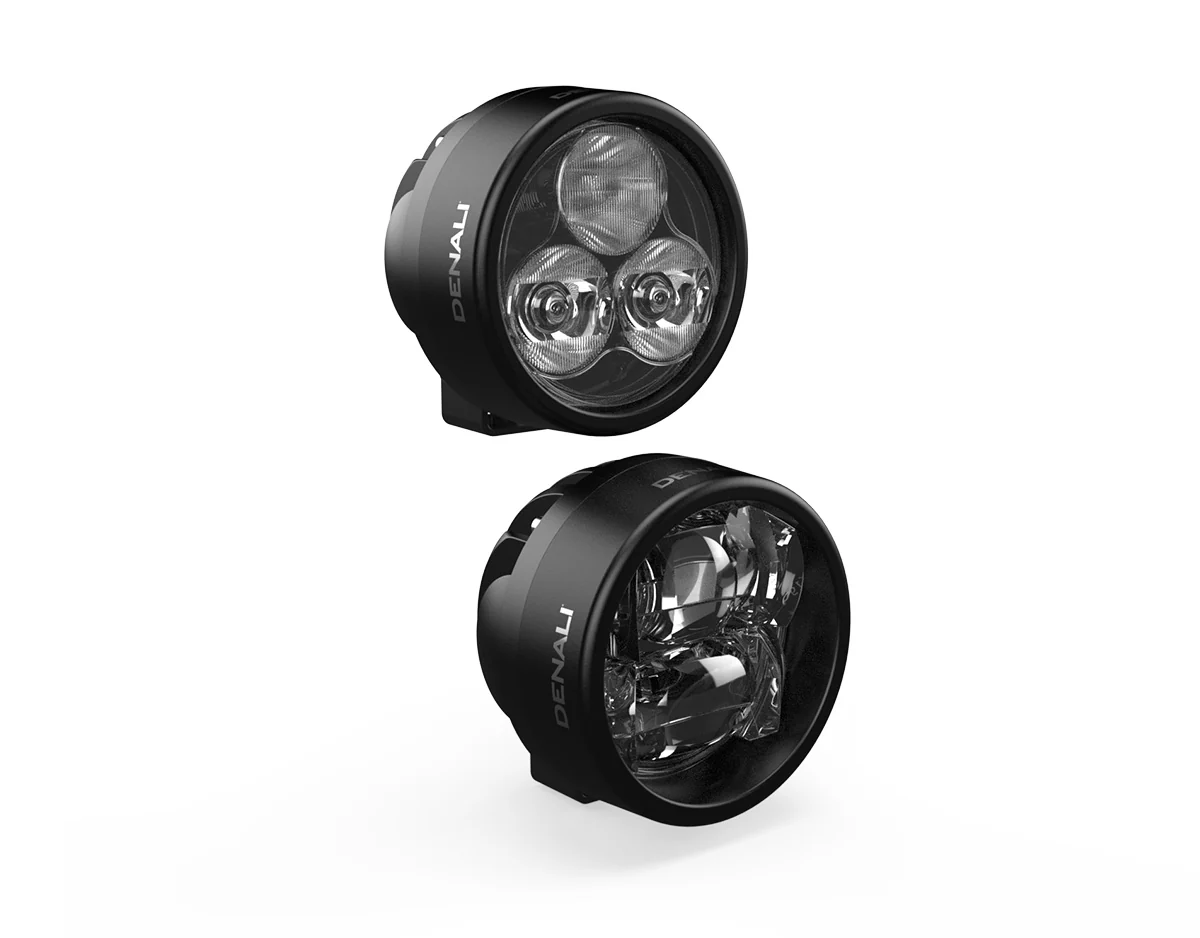

D3 LED Low Beam Light Pod & High Beam Light Pod (pair)
